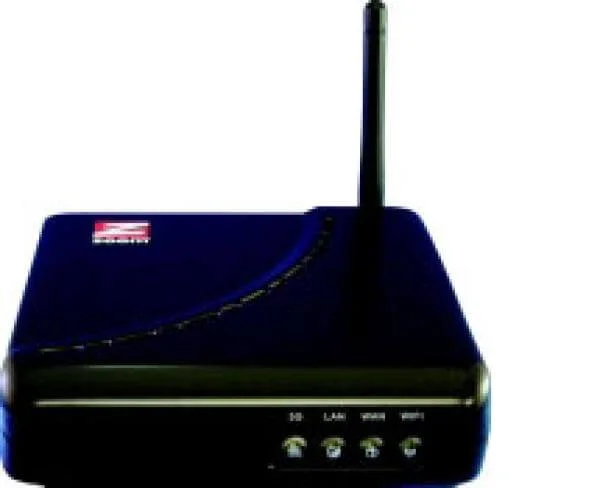

3G Wireless-N Desk Top Router

Share your mobile broadband Internet access in your home or office - Wireless g/b/n Router distributes mobile broadband to Wifi computers,phones, game stations, and more! - 3G USB modem plugs into this AC-powered Router

Now computers, mobile phones, and game stations can share a high-speed wireless connection to the Internet through your mobile broadband USB modem. Just plug in the modem and all the WiFi devices you choose have fast, easy Internet access. It's a great way to share your high-speed mobile broadband connection at home, the office, or anywhere else that AC power is available. The 3G Router's wireless-N networking capability is fast, with extended range for maximum mobility. Now you can provide a 3G mobile broadband Internet connection to all your WiFi devices, including Windows, Macintosh or Linux computers, iPhones and other WiFi mobile phones, the iTouch and Blackberry, barcode readers, and game stations including Nintendo DSi, Nintendo DS Lite, and Playstation Portable. The Model 4501 can often provide an improved 3G connection where signal strength is low. Put the Router and 3G modem where the local 3G signal strength is the best, such as near a window. Then the Router will complete the connection to local WiFi devices through extended-range wireless-N capability. You can connect computers and other devices to the Router through its wireless-N capability or through the Model 4501's Ethernet LAN jack. You can also plug an ADSL modem or cable modem into the 4501 through a second Ethernet port to provide router functions to those devices. When also connected to a 3G USB modem, the 4501 will provide automatic backup to your wired Internet connection. The 4501 provides an extensive list of router features, including robust firewalls, VPN Pass-through, DHCP server, Quality of Service (QoS) and other router functions for up to 253 simultaneous users. The 4501 also supports a wide range of Internet service connection protocols, including static IP, dynamic IP (DHCP client), PPTP, L2TP, PPPoE, and 3G. These can be set up easily if you need them by using the Travel Router's built-in browser interface, or use Universal Plug and Play for even easier setup. The 3G Wireless-N Router is compatible with a wide range of USB mobile broadband modems. A partial compatibility list is provided below.

Wireless LAN Standards: IEEE 802.11n draft specification, IEEE 802.11b/g wireless Interfaces: 1 X RJ45, 10/100 Mbps port for wired WAN modem 1 X RJ45, 10/100 Mbps port option for wired LAN networking 1 X USB 2.0 Host for 3G modem WPS button, power switch, reset button Wireless LAN Security: 64/128 bit WEP (Wired Equivalent Privacy) with Pass Phrase; WPA (WiFi Protected Accesss) and WPA2 with Pass Phrase; SSID stealth; WPS for easy security setup Internet Security Stateful Packet Inspection (SPI) Firewall Network Address Translation (NAT) Denial of Service (DoS) attack detection Virtual Private Networking (VPN) pass through MAC, Packet, and Domain name filtering URL Blocking Management Universal Plug and Play (UPnP) Browser based management Wizard-assisted setup Simple Network Management Protocol (SNMP support) Advanced Router Quality of Service (QoS) support Functions URL Blocking/Filtering (parental control) Scheduling rules (parental control) Virtual Server, Port triggering, and DMZ host Dynamic DNS Configuration Backup/Restore Supported WAN 3G; Static IP Address; Dynamic IP Address; PPP over Ethernet; PPTP WAN type; Protocols L2TP WAN type, Antenna one external antenna with pivoting position adjustment Power Adapter Output 5 Volts, 2.0 Amps Transmission rates Maximum physical rate of up to 150 Mbps in 802.11n mode 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode 1/2/5.5/11 Mbps in 802.11b mode Range coverage Indoors: up to 100 meters (330 feet), depending upon the environment Outdoors: up to 300 meters (990 feet), depending upon the environment LED status indicators Four indicators, reporting: - 3G WAN connection established, data being transferred - LAN connection using Ethernet, data being transferred - Wireless LAN connection available, data being transferred - Wired WAN modem connection established, data being transferred Wireless LAN Channels United States (FCC) channel 1 through 11 frequency range Europe (ETSI) Channel 1 through 13 Dimensions 5 inches X 5.13 inches X 1.25 inches 12.1 cm X 13 cm X 3.2 cm Weight 8.2 ounces Certifications FCC, CE, RoHS compliant Warranty One year Package contents Wireless-N Router Ethernet cable Setup CD Power adapter Base to allow vertical orientation of router
